Products

Custom components in foam, rubber, fibre, textile and GRP for industrial vehicles, from precision 2D cut parts to complex 3D thermo-compressed and composite components.

2D-parts

Converting & cutting

We cut, punch and laminate flat components to size, in whichever material your application calls for:

Acoustic insulation: PU foam, fibreglass, melamine
Thermal insulation: fibreglass 32 to 200 kg/m³, PE foam, cotton felt, E-glass
Anti-vibration rubbers: neoprene, EPDM, silicone
Seals and gaskets
Floor mats
Bitumen and heavy-mass barriers

How we cut

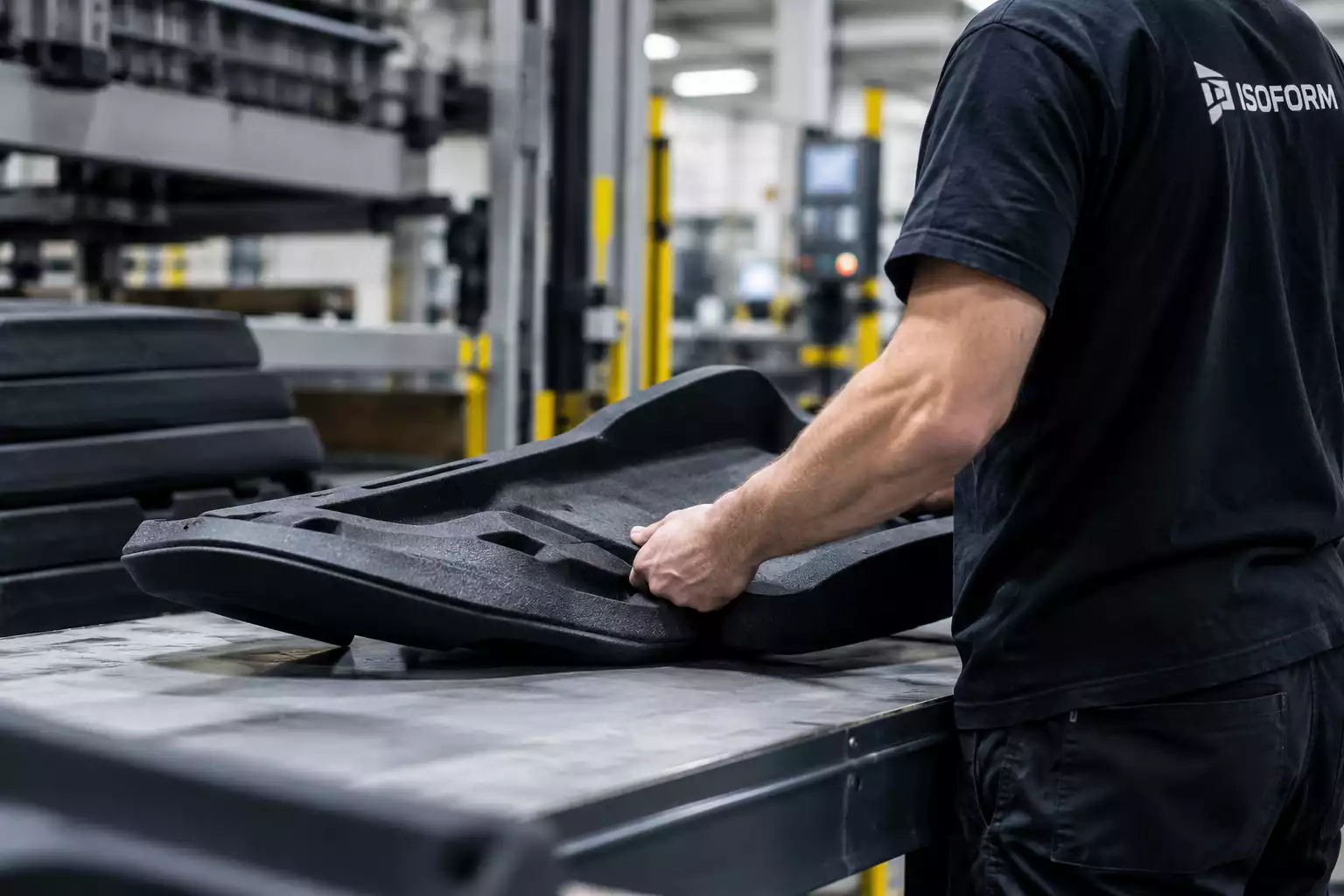

3D-parts

Thermo-compression

Thermo-compression presses fibre materials into three-dimensional shape: light, strong and ready to fit.

Head liners in PES fibre, fibreglass or soft-touch finish
A, B and C pillars and door panels
Rear walls and under-dashboard panels
Ventilation ducts
Wheel arches with high impact resistance
Engine compartment insulation
Natural fibre parts from recycled wood and PP

How we press

GRP

Glass fibre reinforced polyester

Through our partner company, we produce composite components for the same vehicle platforms we already serve:

Glass fibre and carbon fibre parts
Hand Lay-Up and Spray-Up
Vacuum Infusion and RTM light

The advantage goes beyond one more material in the catalogue: a GRP panel can be combined with its acoustic insulation, sealing foams and textile trim, from one supplier.

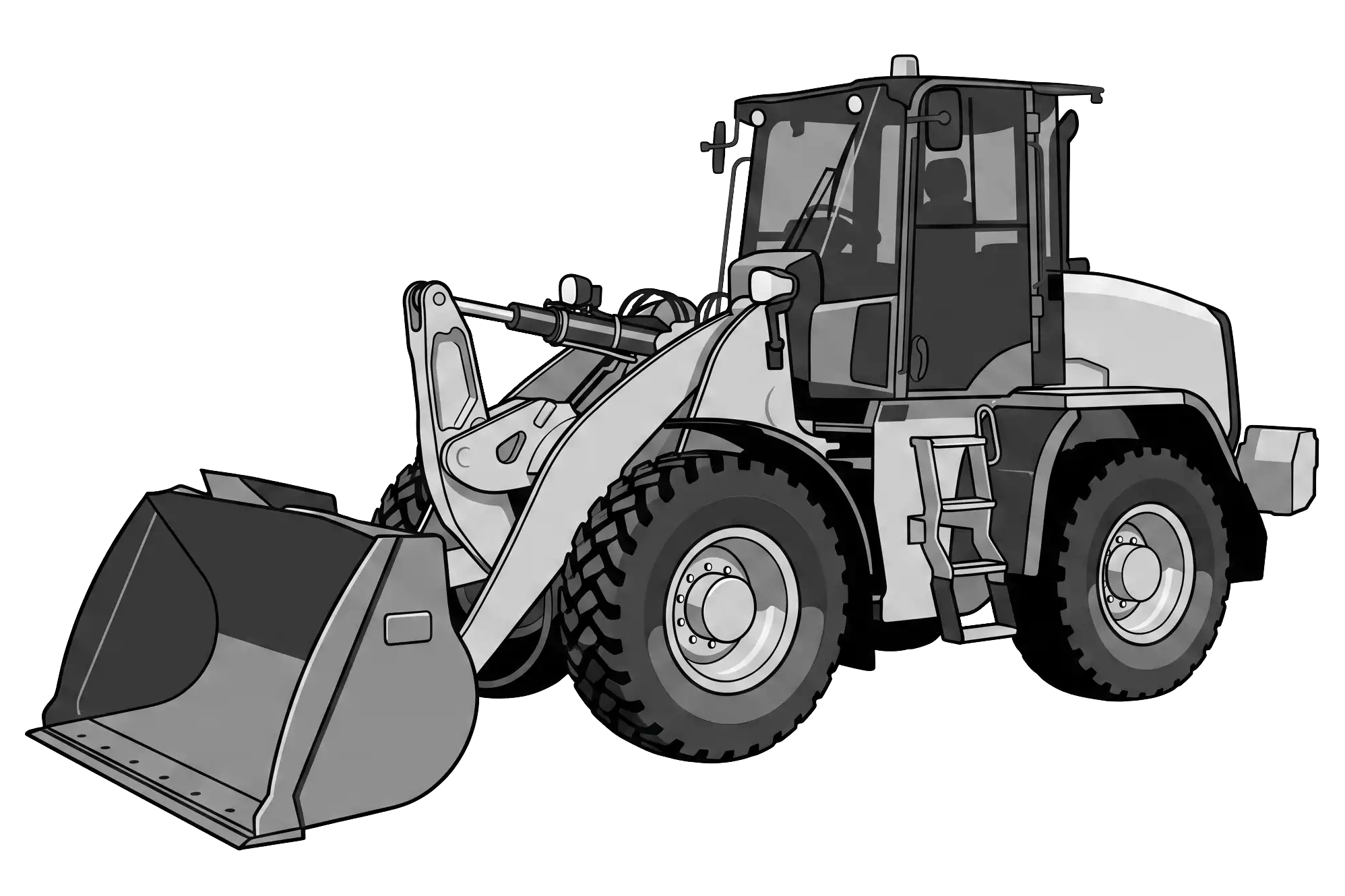

One machine, one supplier

Every insulation, interior and protection part in this cab comes from Isoform. Click a hotspot to see what it is.

Materials suitable for

Acoustic

Low & high frequency noise

PU foam, open cell, flame-retardant and reticulated grades (25–50 kg/m³, 5–75 mm)
Melamine foam (10 kg/m³, up to 58 mm) & recycled bonded foam (100–180 kg/m³)
Glass wool & PES fibre (25–105 kg/m³, 15–60 mm, black veil or glass veil)
Heavy mass barriers: bitumen & EPDM (4.8–10 kg/m², self-adhesive)

Thermal

Heat & cold insulation

Glass wool & E-glass with aluminium facing (up to 60 mm)
Cross-linked PE foam (25–30 kg/m³, 3–40 mm)
Firewall laminates: E-glass 5–10 mm + alu backing, glass fleece + alu + adhesive
PES needle felt & cotton felt (up to 1000 g/m², 30 mm)

Anti-vibration & sealing

Vibrations, shocks, water & dust

Solid rubber: EPDM, neoprene, NBR, SBR, HNBR, silicone (1–20 mm, 30–80 Shore A)
Cellular rubber & EPDM sponge (1–50 mm, plain or self-adhesive; tapes 6–20 mm wide)
Reinforced rubber sheets with 1–2 fabric inlays
PVC foam (13–18 mm) & SBR checker mats (3 mm, FMVSS 302)

Trim & carriers

Visible finish and structure

Needle-punched PES non-wovens & headliner fabrics (120–1000 g/m², up to 2000 mm wide)
PVC leather (simili) & velour (190–400 g/m², incl. perforated grades)
PES / BICO / glass-fibre carriers (300–1600 g/m², thermoformable)
Rigid sheets: ABS, ABS/PC, HDPE, PETG, GRP (1.5–24 mm)

All materials available plain, self-adhesive or laminated (alu foil, PET film, fabrics, protective film), combined into multi-layer parts to your spec.
